 Post subject: Re: Depth Finder Install
PostPosted: Tue Aug 04, 2015 12:36 am
Offline
Team Axis

Joined: Tue Sep 02, 2014 1:55 pm
Posts: 148
Here is a picture of the connector. Should be on the starboard side inbetween the engine and the transmission.


Attachments:
unnamed.png [ 49.7 KiB | Viewed 6789 times ]
Top
 Profile

 Post subject: Re: Depth Finder Install
PostPosted: Tue Aug 04, 2015 7:03 am
Offline
Team Axis

Joined: Sat Jun 06, 2015 10:35 pm
Posts: 1181
Location: Sammamish WA
Thanks... so was your above the transmission or down on the side more? Mine must be covered by something? Or I'm just blind..

_________________
-2015 A24 - 409 HP - 2249 Prop - 1100 rear sacs - 950 front sac - 290lb rider with Red Rocket and Phase 5 Quest


Top
 Profile

 Post subject: Re: Depth Finder Install
PostPosted: Tue Aug 04, 2015 3:06 pm
Offline
Team Axis

Joined: Sat Jun 06, 2015 10:35 pm
Posts: 1181
Location: Sammamish WA
Note to A24 owners (possibly others) the transducer is designed to go next to the front ballast pumps not in the rear by the transmission (per Axis tech support). The plug is right under the large plastic access panel under the carpet. I had to run the wires over the gas tank as I installed the transducer before finding plug (Im a dumb ass but it will still work fine)

_________________
-2015 A24 - 409 HP - 2249 Prop - 1100 rear sacs - 950 front sac - 290lb rider with Red Rocket and Phase 5 Quest


Top
 Profile

 Post subject: Re: Depth Finder Install
PostPosted: Mon Sep 21, 2020 5:36 pm
Offline

Joined: Sun Apr 22, 2018 8:42 pm
Posts: 10
Location: Annecy, France

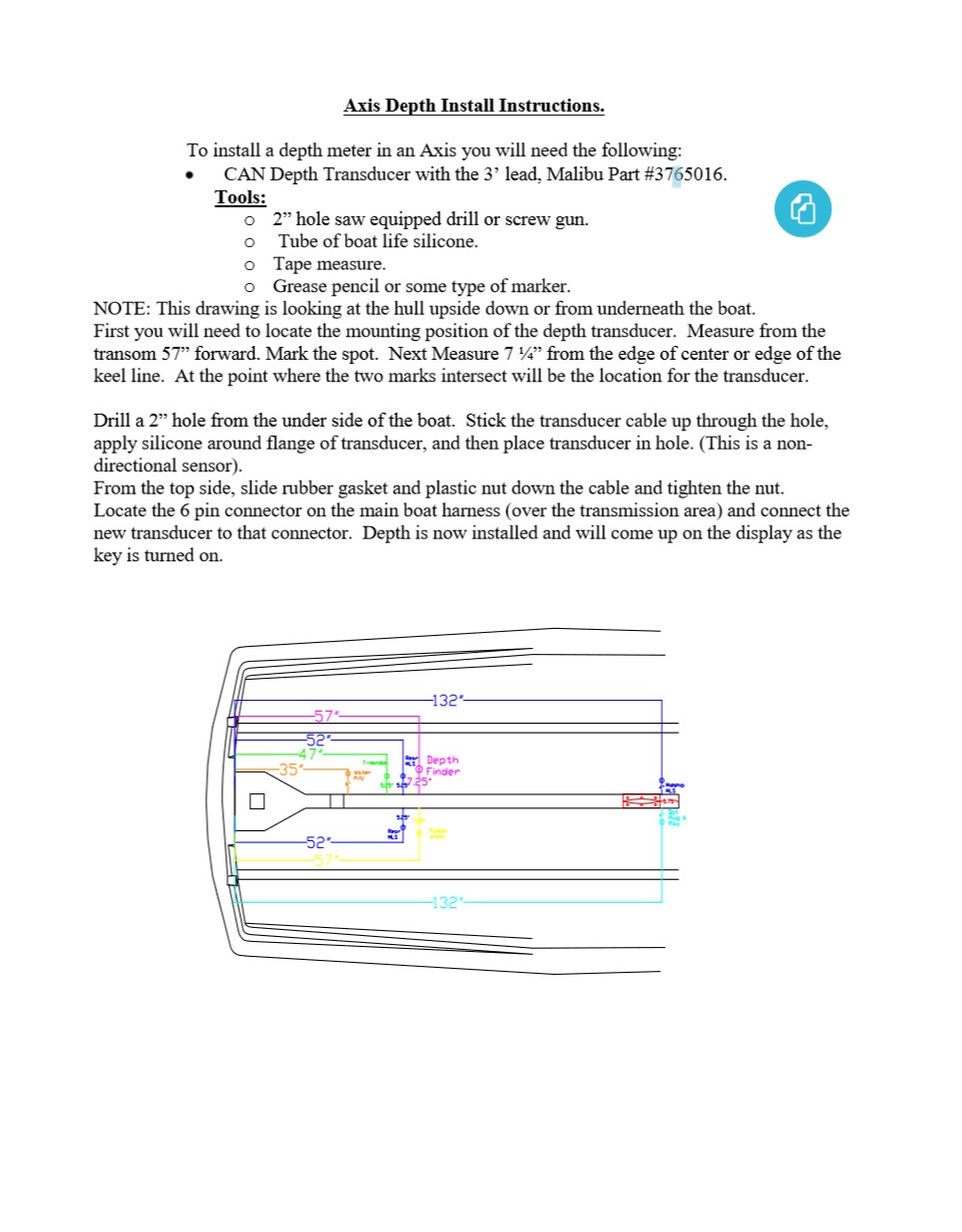

Got install instructions from Axis in case anyone finds them useful


Attachments:
Axis Depth Install Instructions.jpg
Axis Depth Install Instructions.jpg [ 156.09 KiB | Viewed 656 times ]
